| Model |
P802 |
| Carriers and Networks |
|
| Carrier Support |

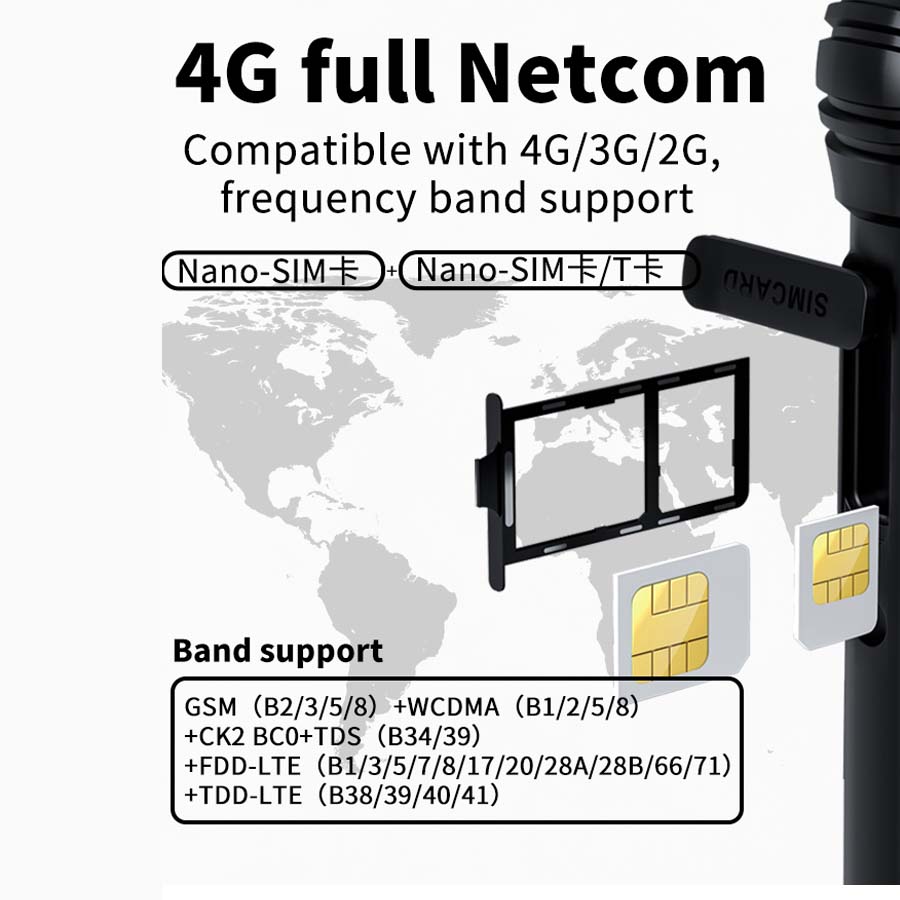

4GNote,Compatible with4G/3G/2G |
| NETWORKS |
GSM(B2/3/5/8)
WCDMA(B1/2/5/8)+CK2 BC0+TDS(B34/39)
FDD-LTE(B1/3/5/7/8/17/20/28A/28B/66/71
TDD-LTE(B38/39/40/41) |
| Network Mode |
Dual Sim |
| SIM mode |
Nano-SIM+Nano-SIM/TF |
| WIFI |
2.4G/5.0G,support 802.11 a/b/g/n/ac |
| BT |
Bluetooth 5.1 |
| Hardware information |
| Color |
black |
| Size |
240*146*18mm |
| Weight |
754g |

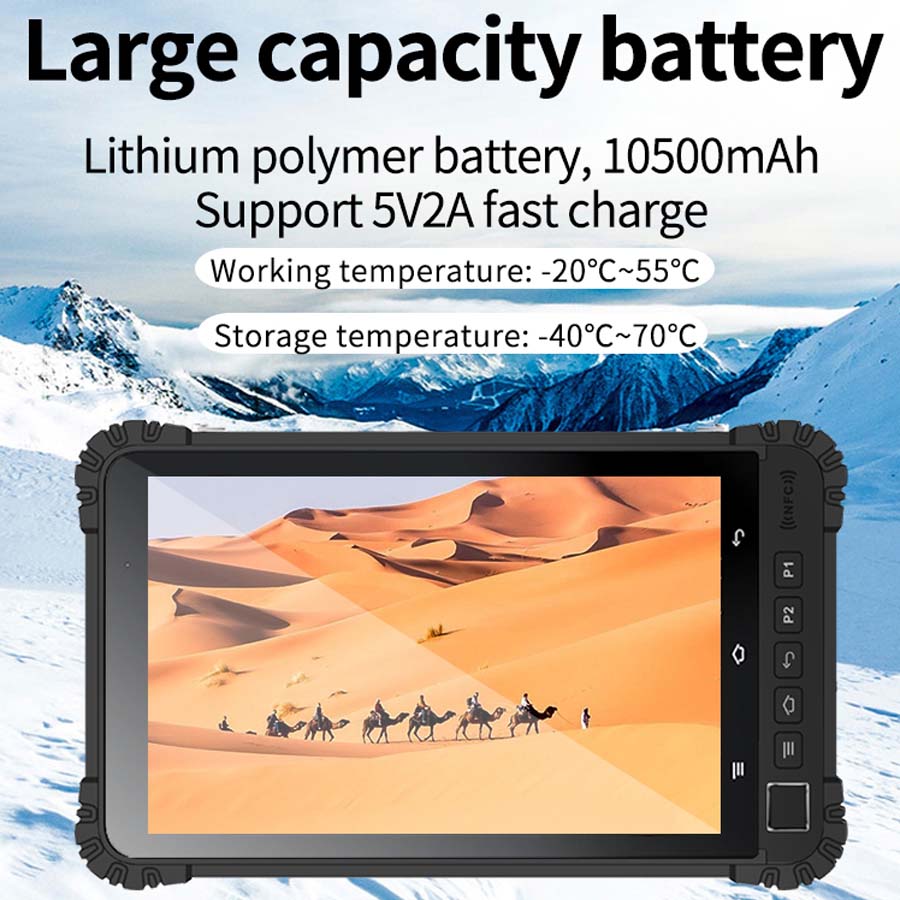

| Battery |
Li-polymer Battery,10500mAh |
| Charging mode |
Supports 5V3A quick charge |
| OSD |
| LCD |
8.0 inch (G+F+F) |
| DPI |
FHD+1200(RGB)x1920 |
| Luminance |
450nit |
| Systems and Hardware |
| OS |
Android 12 |
| CPU |
MTK 6762V/CB WB:Cat4,5M CB:Cat4,6M |
| RAM |
6GB |
| ROM |
128GB |
| TF card |
Up to 128GB |
| rear camera |
13.0M AF |
| front Camera |
8.0M FF |
| Flash/phone barrel |
Rear LED flash |
| MAGSENSOR |
support |
| Compass |
support |
| G-SENSOR |
support |
| GYRO SENSOR |
support |
| GNS |
GPS,BDS,Glonass,GLL |
| keys |
Return KEY , menu KEY,home KEY, 2 custom keys |

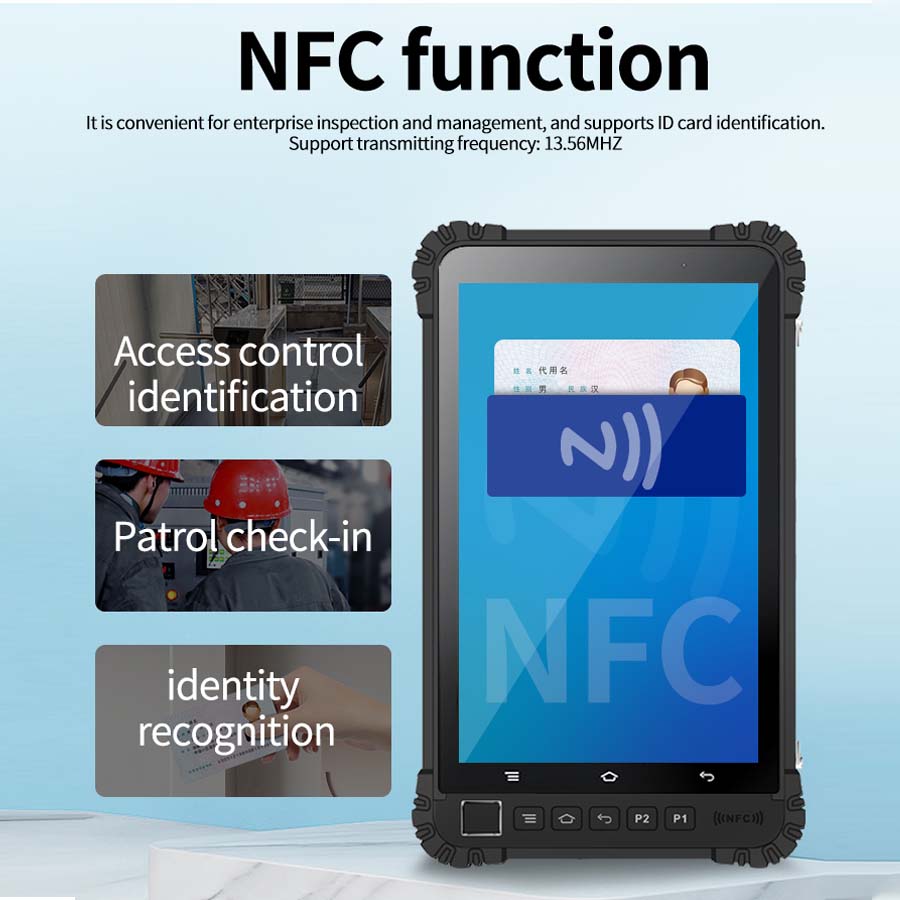

| NFC |
front NFC ,RF:13.56MHZ |
| FingerPrint |
Front fingerprint support
(Optional industrial fingerprint) |
| Speaker |
Smart PA 2030speaker |
| Video |
MP4/WMV/MAV |
| Audio |
MP3/WAV/WMA/Eaac+/FLAC player |
| Built-in language |
multiple |

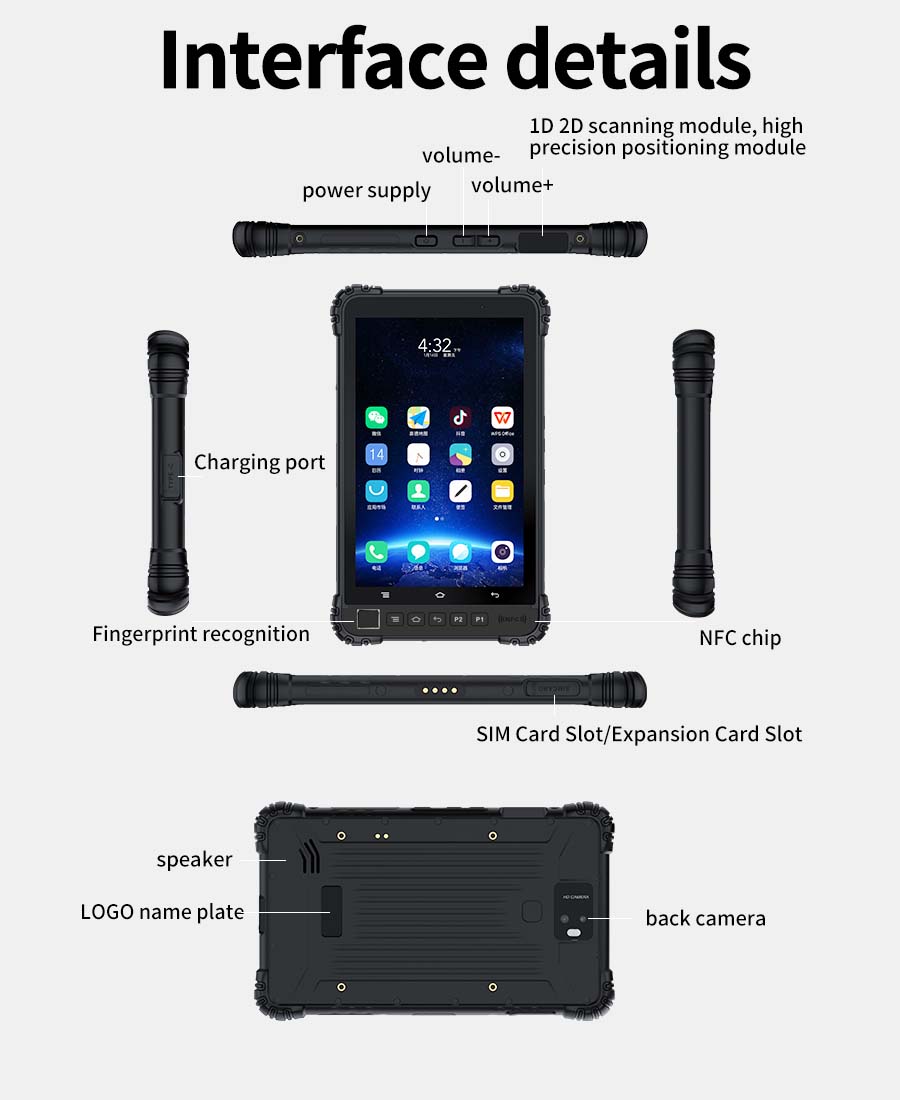

| Interfaces and Buttons |
| USB port |

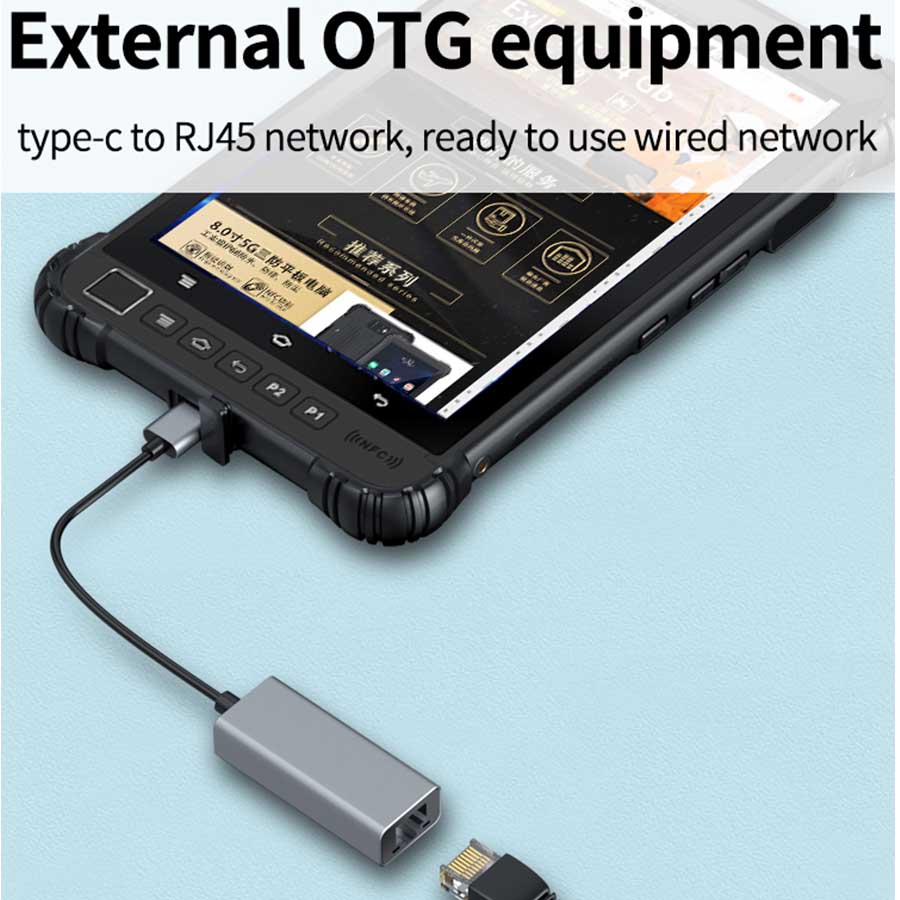

Type C,support USB turn RJ45 |
| Data port |
Support seat charger |
| power button |
turn on or off |
| volume button |
vol +/- |
| Other function |
| Working temps |
-20~55 |
| Storage Temp |
-40~70 |
| Optional module |

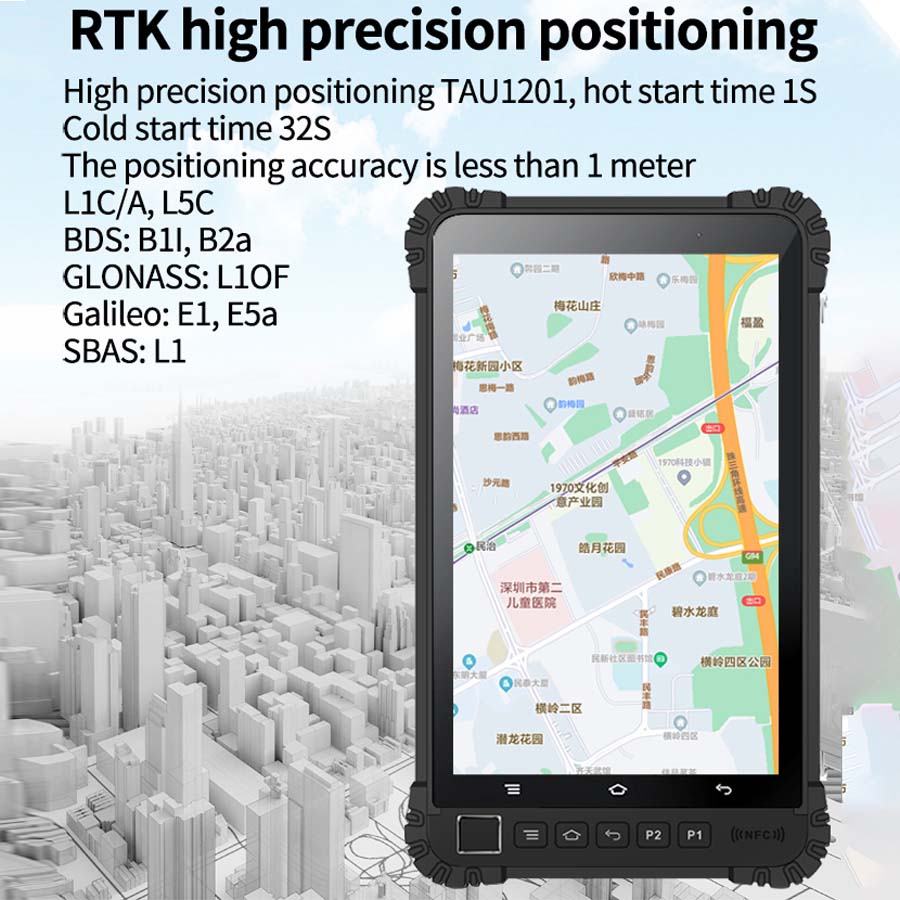

high fix TAU1201 ,
Preheating start time 1S .
Cold start time 32S
Positioning accuracy is less than 1 meter
GPS/QZSS: L1C/A, L5C
BDS: B1I, B2a
GLONASS: L1OF
Galileo: E1, E5a
SBAS: L1 |

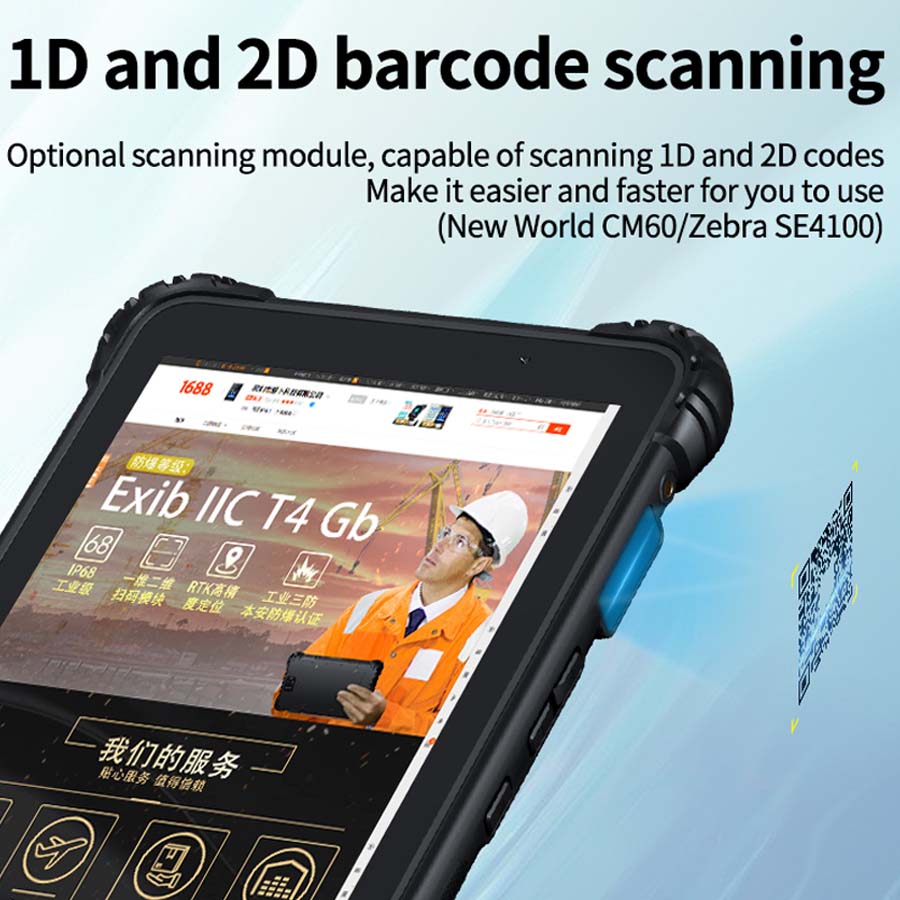

1D/2D SCAN :
Zebra SE4100
Honeywell:N670X- NLS-CM60 |
| Industrial fingerprint module |
