| Product Style |
Product Form |
Clamshell |
|
| Dimension |
359.5*233.8*18mm |
|
| weight |
<1.7kg |
|
| Material |
A/C/D metal, B Plastic |
|
| LCD |
LCD size |
15.6" |
|
| LCD Resolution |
HD/FHD |
|
| Surface Technics |
IPS/TN |
|
| LCD Brightness |
220cd/O |
|
| TP |
Support or Not |
NA |
|
| Touchpad |
Interface type |
HID I2C |
|
| Fingerprint |
Support |
Option |
| Keyboard |
Black light |
Support |
Option |
| Language layout |
UK/US |
|

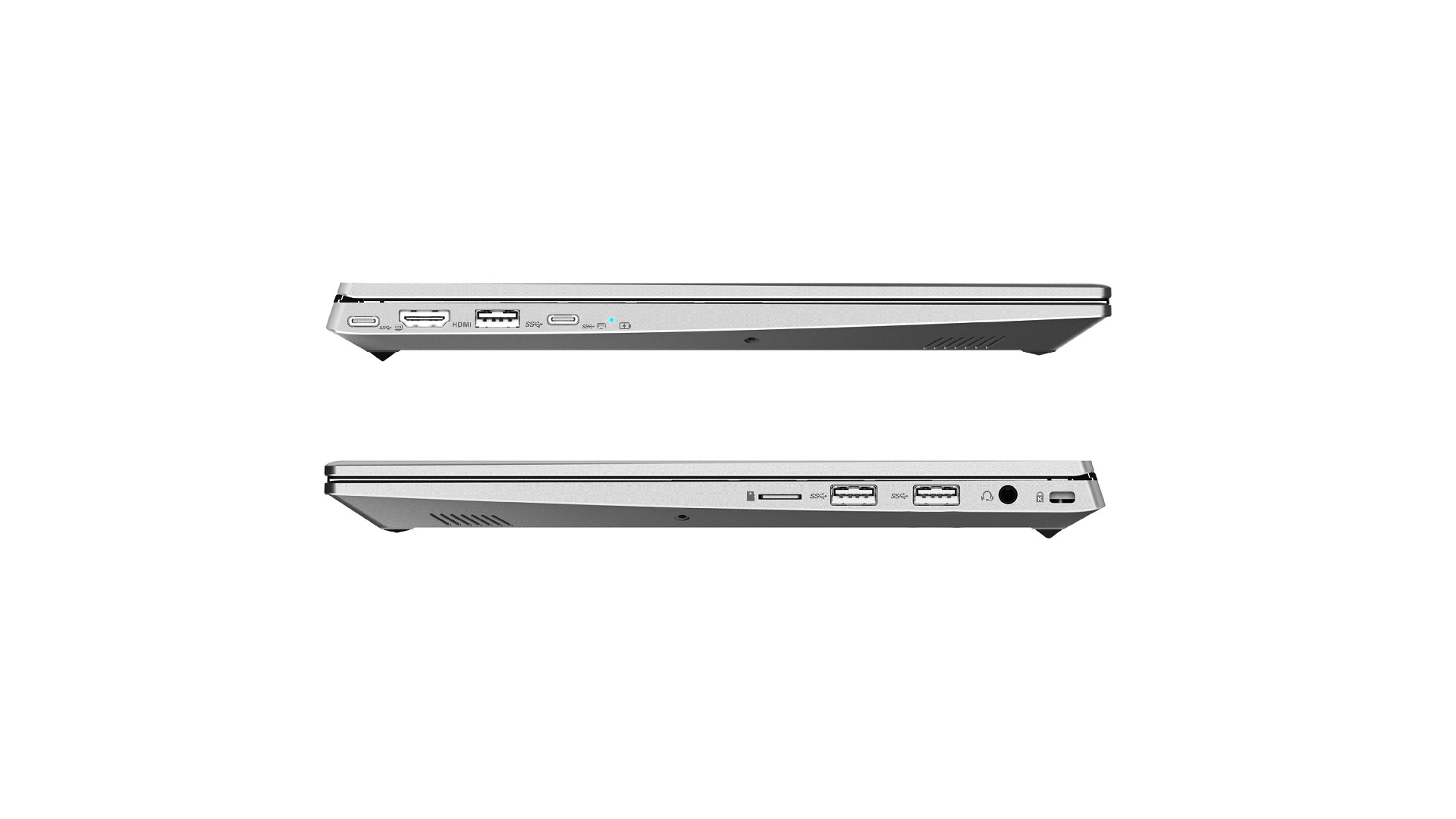

| External I/O |
MB Side |
|
| DC Jack |
1*Ø3.5*1.35mm |
|
| HDMI |
1*Standard HDMI 2.0b |
|
| USB Type_A |
1*USB3.2 Gen1 |
|
| USB Type_C |
1*TBT4.0 |
|
| DB Side |
|
| Audio Jack |
1*Ø3.5mm Combo |
|
| USB Type_A |
1*USB3.2 Gen1 |
|
| 1*USB2.0 |
USB2.0 or RJ45 |
| RJ45 |
1*RJ45(GLAN) |
| Cardreader |
1*Micro SD |
|
Indicated
light |
Charge LED |
Red LED for charging
Blue LED for full charged |
|
| Power LED |
Blue LED |
|
| Hardware |
| CPU |
Type |
Intel ADL-U/P/H |
P Platform, U/P/H Series, Up to 35W |
| GPU |
Type |
Intel Integrated graphics |
|
| Storage |
RAM |
2*DDR4 SODIMM |
|
| ROM (eMMC/UFS) |
NA |
|
| SSD |
1 *M.2 2280 PCIe4.0
or 1 *M.2 2280 PCIe3.0/SATA |
BOM |
| HDD |
Support |
Option |
| Extended Storage |
1*Micro SD3.0 |
|
| Battery |
Type |
Li-polymer Battery |
|
| Capacity |
11.4V /4700mAh 53.58wh |
|
| Audio |
Speaker |
2*81W or 2*42W |
|
| MIC |
2*D-MIC in Camera Module |
|
| Camera |
Front |
USB,1MP |
|
| Rear |
NA |
|
| Sensor |
G_sensor |
NA |
|
| Hall Sensor |
Support |
|
| TPM |
Interface type |
SPI |
FTPM or DTPM option |
| vPro |
Type |
vPro Enterprise |
Option |
| RTC |
RTC Connector |
Support |
|
| Others |
|
|
| Network Connections |
| WIFI |
WIFI chip model |
M.2 2230 PCIe&CNVi |
|
| WIFI Standard |
Support WiFi 802.11b/g/n/ac/ax |
Wifi6 |
| WIFI Frequency |
2.4G/5G |
|
| Bluetooth |
Bluetooth |
Support |
|
| Version |
4.2/5.1 |
|
| LTE |
4G LTE |
NA |
|
| Ethernet |
Gigabit Lan |
Optional |
|
| Modern Standby |
Support or not |
Yes |
|
| Software |
| OS |
System |
Windows 11,Windows 10,Ubuntu |
|
| Language Supported |
Support multi-language |
|
| BIOS/EC |
UI spec |
IP3 customization |
|
| Standard Accessories |
| Adaptor |
INPUT |
AC 100~240V |
|
| OUTPUT |
19V*3.42A, 65W |
|
|
