Type	Item	Description	Remark

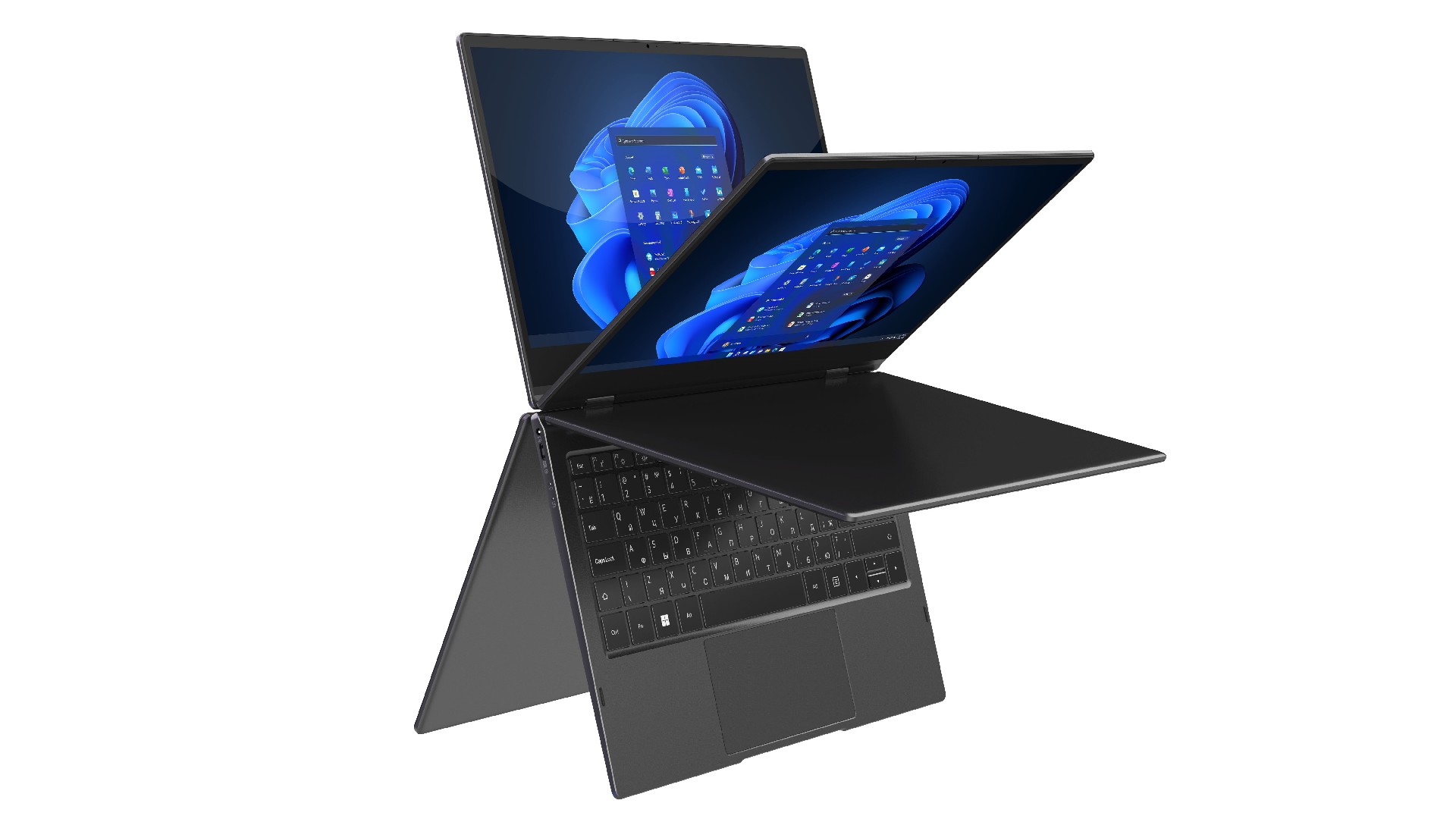

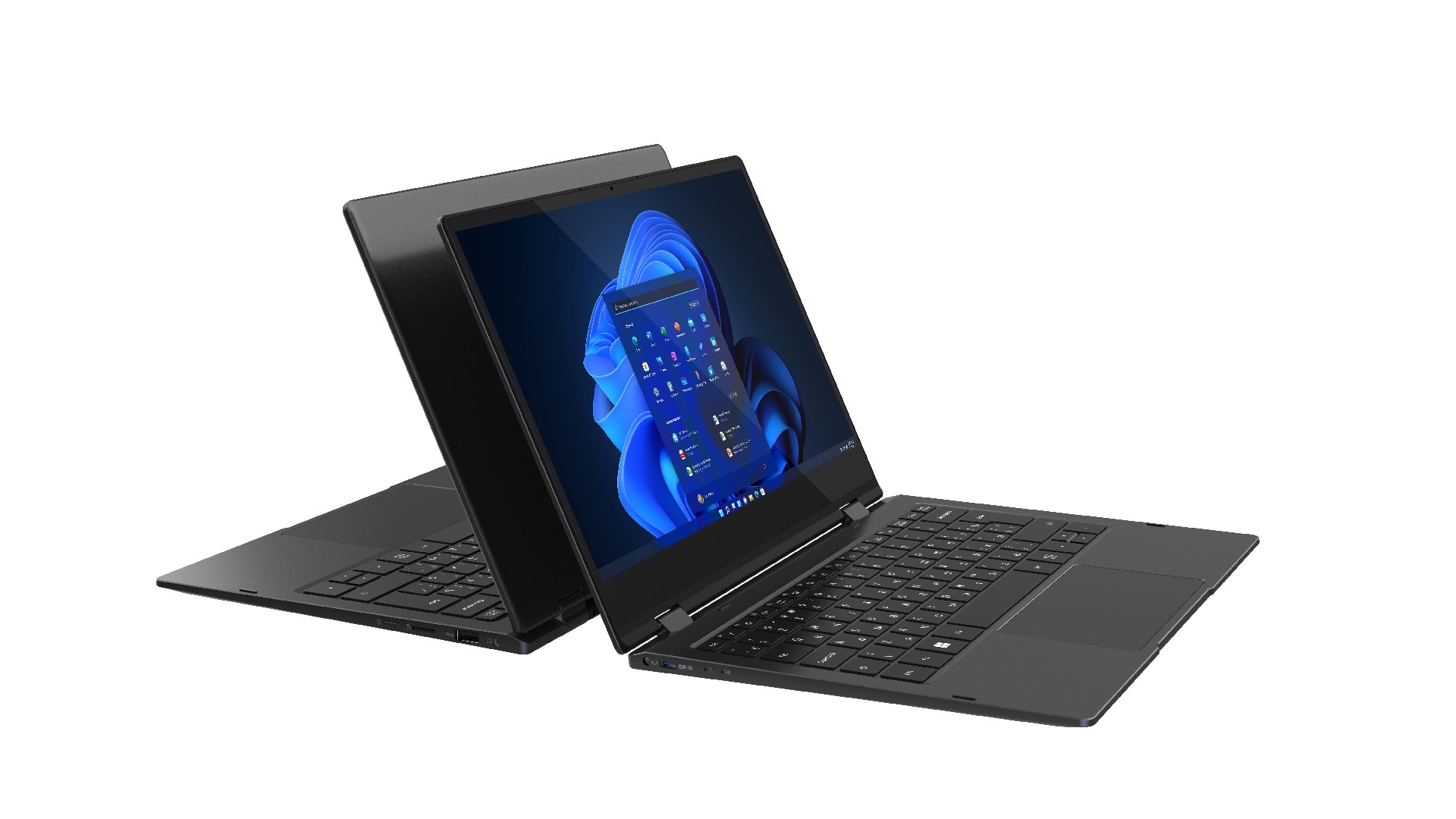

Product Style	Product Form	Convertible
	Dimension	307.4208.416.2 mm
	weight	1.26kg
	Material	Metal
LCD	LCD size	13.3''
	LCD Resolution	1920*1080
	Surface Technics	IPS	eDP
	LCD Brightness	>=200cd/�O	reference
TP	Material	GFF	optional with Pen
	Number of Channels	62*40	GT7385P,GT7382H
Touchpad	Interface type	HID I2C
	Fingerprint	Option
Key bord	Back light	Option
	Language layout	US/UK/JP
I/O Port	Type_C	1*Full function	PD 15W,DP,USB
	USB	1*USB3.2 Gen1
	TF card	Micro SD Card
	Audio Jack	Ø3.5mm	Combo jack
	DC Jack	Ø3.5*1.35mm
Indicated light	Charge LED	Red LED for charging Blue LED for full charged
	Power LED	Blue LED
Hardware
CPU	Type	Intel®Alder Lake U	15W, i3/i5/i7
GPU	Type	Intel Integrated Graphics
Storage	RAM	On Board LPDDR4X	366ball or 556ball
	ROM(EMMC)	NA
	SSD	2*M.2 2280 PCIE/SATA
Battery	Type	Li-polymer Battery
	Voltage	7.6V
	Capacity	5000 mAh,38Wh	Max 6200mah
Camera	Front	1.0M
Sensor	G_sensor	support
	Hall Sensor	support
Audio	Speaker	4��2W Box*2
	Codec	ALC269,ES8326
	MIC	2*D-MIC in Camera Module
Vpro	Type	NA
Modern Devices	Standard	Support
Network Connections
WIFI	WIFI chip model	BCM43438KUBG
	WIFI Standard	support WiFi 802.11b/g/n/ac/ax
	WIFI Frequency	2.4 Ghz
Bluetooth	Bluetooth	support
	Version	5.0
Software
OS	System	Windows11
	Language Supported	support multi-language
BIOS/EC	UI spec	Clover customization
Standard Accessories
Adaptor	INPUT	AC100~240V
	OUTPUT	DC��3.5mm 19V/2.1A
